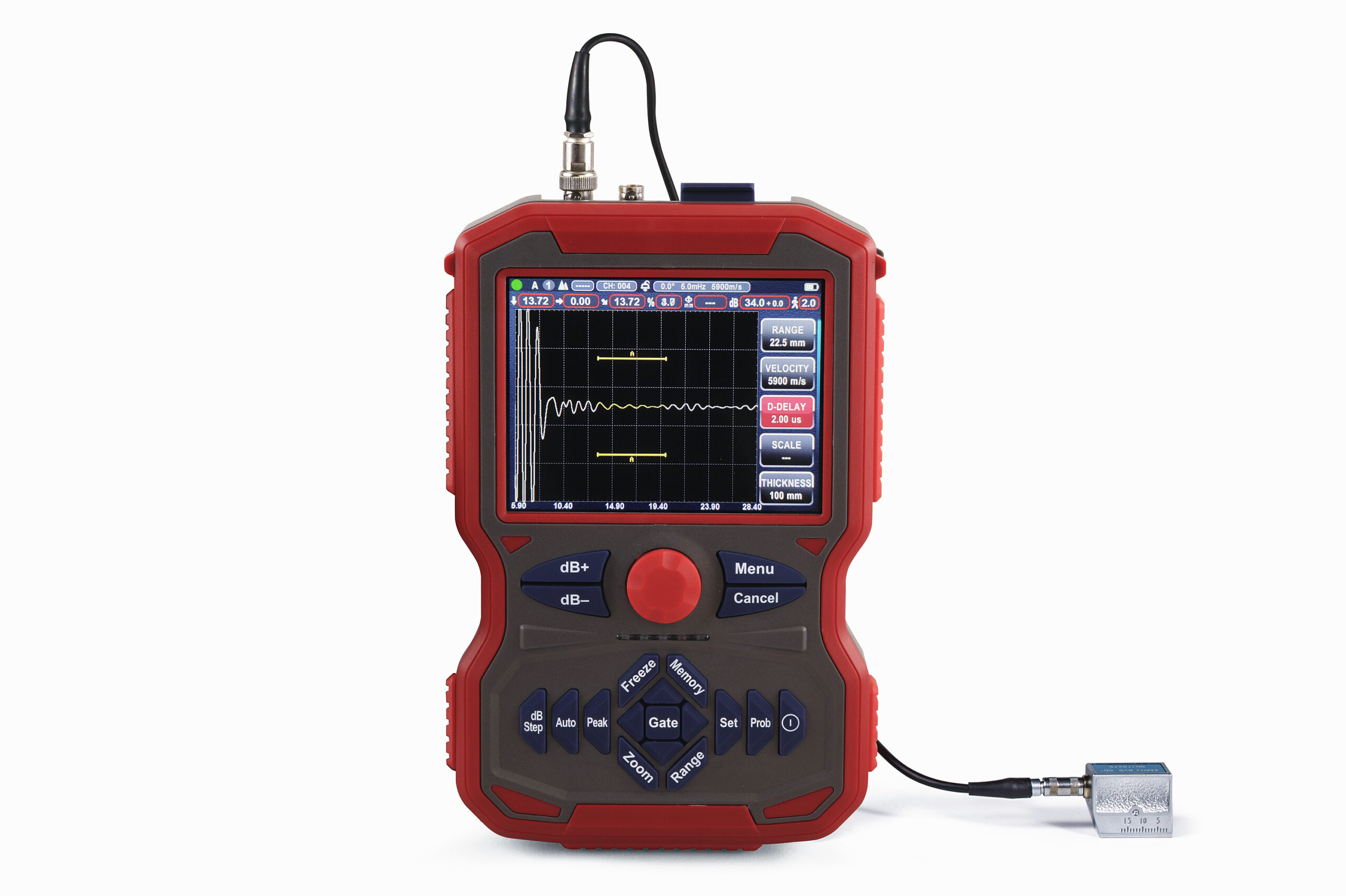

Ultrasonic Flaw Detector Uee981



Quick and accurate detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as welding cracks, defects and more. It is widely used in the Steel Structure Industry, as well as the electric power, petrochemical, boiler and pressure vessel, railway transportation, automobiles, machinery, and other fields.

Functions and Features

  • IP65, portable and ultra-thin design
  • Meet the requirements of EN12668-1
  • Square wave pulser, PRF up to 3 kHz for fast scanning / detecting
  • High-speed sampling for clear and stable echo diagram with all details
  • High numbers of digital filters, suitable for nearly any application
  • Anti-noise design, high signal-to-noise ratio, perfect for tough working conditions
  • With standard DAC/ TCG /DGS / AVG function, Color B-Scan
  • Built-in standards, AWS D1.1/D1.5. tools, flaw detection video recording
  • Reports can be automatically formed and viewed on the equipment
  • PC connection / Blue tooth connection to mobile for data management and reports printing on-site
  • Storage: 1000 groups of data (expandable); External USB for directly storage (unlimited memory)
  • Battery life ≥ 10 hours, with fast independent charging control
  • Language: English (expandable: German / Turkish / Korean / Spanish and etc.)

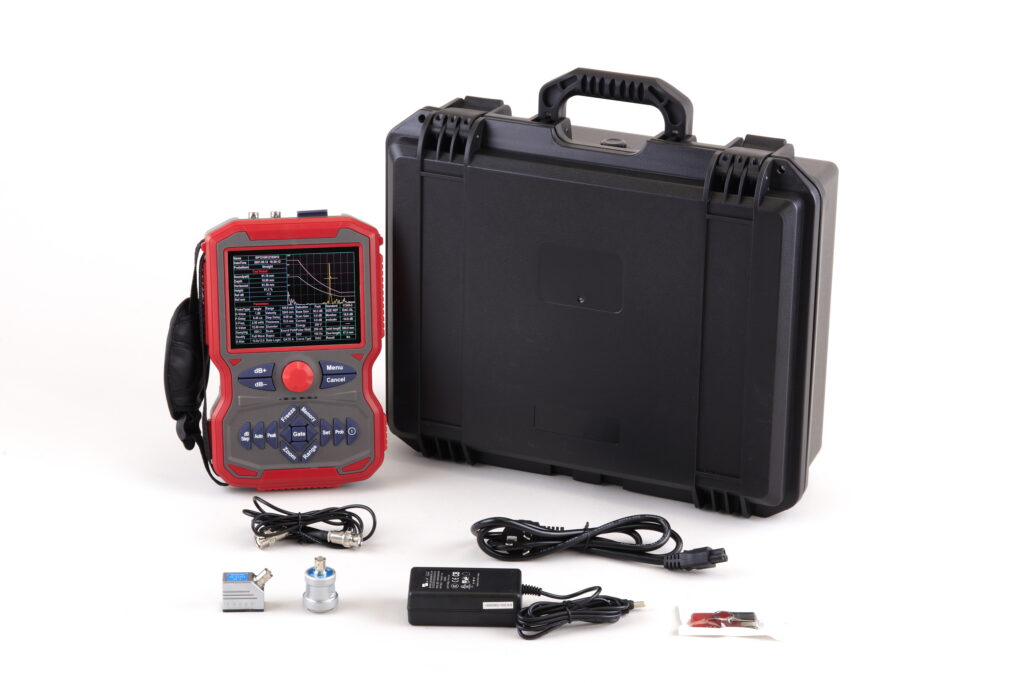

In the Box:

Main unit x1
Probe and Cable x2
Power Adapter & Battery x1
Carry Strap x1
PC software x1 Manual x1
Mobile App (Uee981O/ 981E only) x1 Certificate & Documents x1
IIW V2 Block (Uee981E only) x1 ABS Instrument Box x1
